JSDH-60G 2000W~30000W 光纤激光切管机

JSDH-60G 2000W~30000W专业切管机

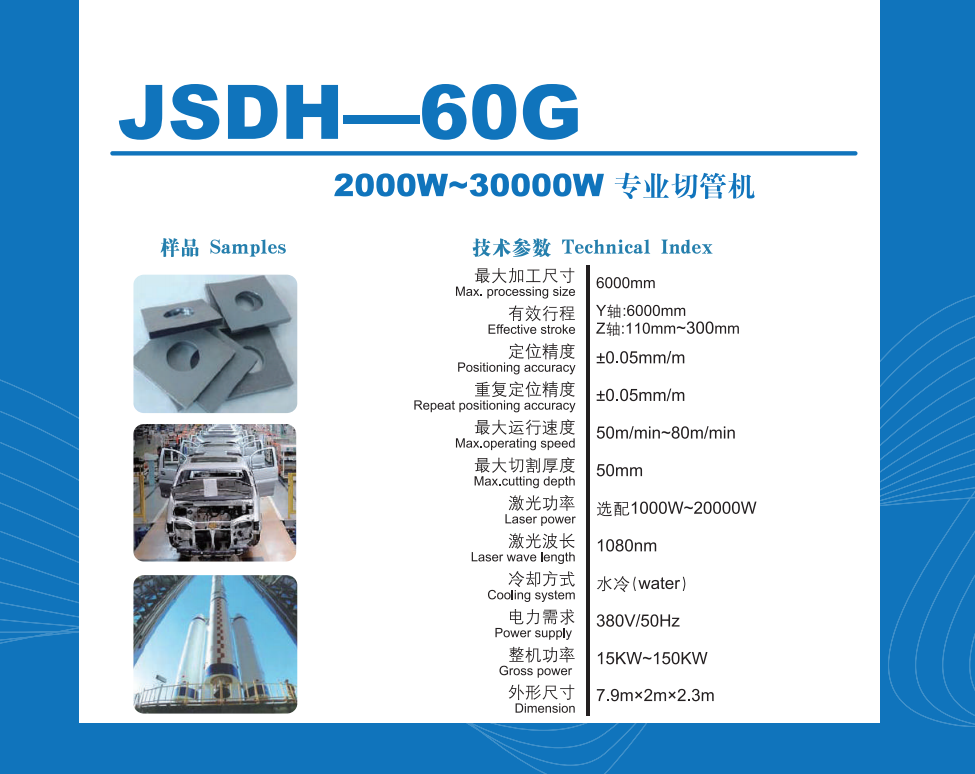

技术参数

最大加工尺寸： 6000mm

有效行程：Y轴：6000mm Z轴：110mm~300mm

定位精度：±0.05mm/m

重复定位精度：±0.05mm/m

最大运行速度：50m/min~80m/min

最大切割厚度：50mm

激光功率：选配2000W~30000W

激光波长：1080nm

冷却方式：水冷

电力需求：380V/50Hz

整机功率：15KW~150KW

外形尺寸：7.9mx2mx2.3m

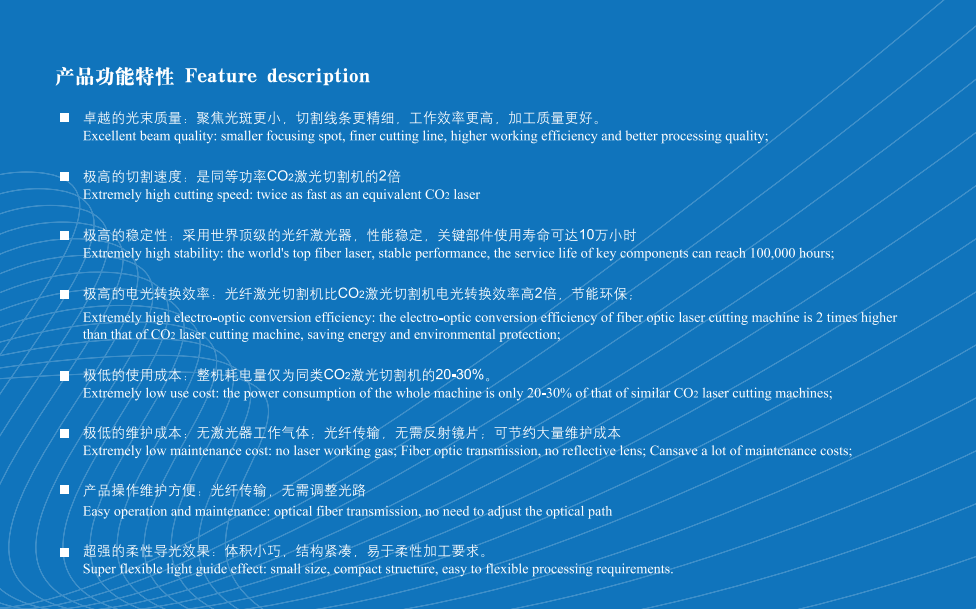

产品功能特性 Feature description

聚焦光斑更小，切割线条更精细，工作效率更高，加工质量更好。

smaller focusing spot,finer cutting line,higher working efficiency and better processing quality:

激光器性能稳定，关键部件使用寿命可达10万小时

laser stable performance,the service life of key components can reach 100,000 hours;

光纤激光切割机比CO2激光切割机电光转换效率高，节能环保

the electro-optic conversion efficiency of fiber optic laser cutting machine is higher than that of CO2 laser cutting machine,saving energy and environmental protection;

整机耗电量低

the power consumption of the whole machine is lower than similar CO2 laser cutting machines;

维护成本低，无激光器工作气体；光纤传输，无需反射镜片；可节约大量维护成本

low maintenance cost no laser working gas;Fiber optic transmission,no reflective lens;Can save a lot of maintenance costs:

产品操作维护方便：光纤传输，无需调整光路

Easy operation and maintenance:optical fiber transmission,no need to adjust the optical path

体积小巧，结构紧凑，易于柔性加工要求。

small size,compact structure,suitable for flexible processing requirements
